Khoom Taw Qhia

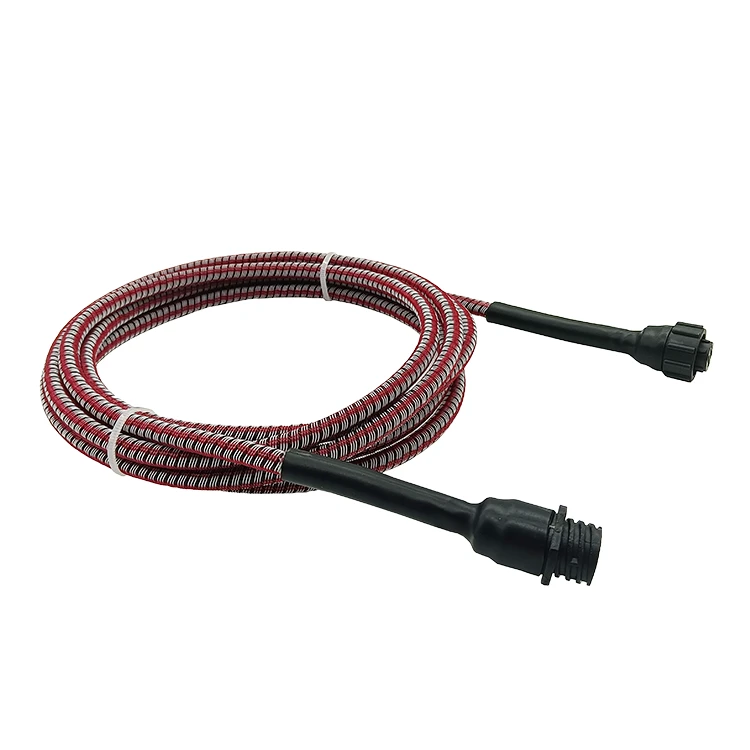

GDL4Y roj to detection cable yog tsim tshwj xeeb rau cov roj to thiab tuaj yeem siv ua ke nrog cov kua dej ntws tawm. Yog hais tias ib feem ntawm qhov kev tshawb nrhiav strip pom qhov nkag ntawm cov kua, lub teeb liab yuav tshwm sim. Qhov kev kuaj xyuas kab no tuaj yeem teb sai thiab raug rau cov roj to. Cov kab nrib pleb yog compact hauv cov qauv thiab muaj qhov yooj yim, ua rau nws yooj yim rau nruab. Customized lengths muaj, thiab ob qhov kawg yog nruab nrog ceev kev twb kev txuas terminals kom yooj yim ncua kev siv.
Khoom Parameters
GDL4Y roj to detection cable tau txais ntau yam ntawv pov thawj xws li CE, ROHS, FCC, thiab cov uas muab los ntawm lub koom haum metrology.
Hom Daim Ntawv Thov Kev Lag Luam ntawm Cov Khoom
GDL4Y roj to detection cable muaj feem xyuam rau hauv kev lag luam roj av thiab petrochemicals, aviation, thiab lub zog.
Compatibility nrog Kev Tshawb Fawb Cables

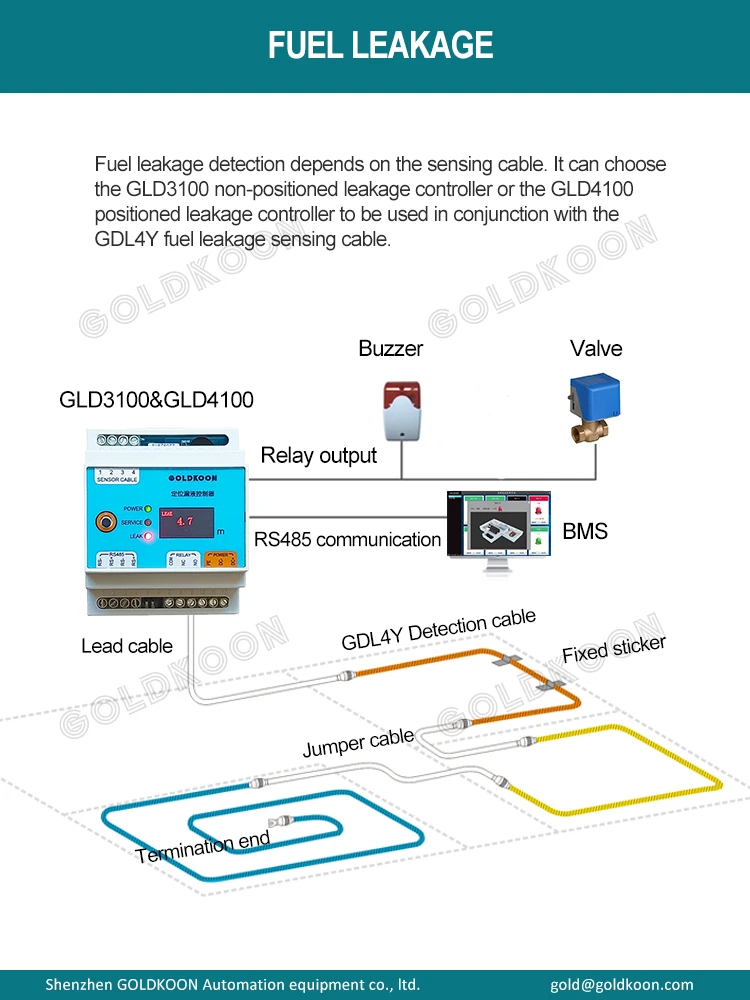

GDL4Y roj to sensing cable tuaj yeem siv ua ke nrog GLD3100 leakage detector controller thiab GLD4100 to leakage controller.
Nco tseg
Cov khoom no yuav tsum tau hloov tom qab nkag mus rau hauv cov kua hydrocarbon thiab tsis tuaj yeem rov qab los. Lub sij hawm teb tom qab kuaj pom roj: Roj av - 12 feeb, #1 Diesel Roj - 60 feeb, #2 Diesel Roj - 120 feeb, JP5 Jet Propellant - 70 feeb, Dav Hlau -Ib dav hlau Propellant - 50 feeb, Xylene - 20 feeb.
Technical Specifications
| Khoom siv Cable | Fluoropolymer + hlau alloy |
| Core Resistance | 13 ohms / m |
| Cable Xim | Ntshav |
| Cable Loj | 9mm ib |
| Txhaum Zog | 90 KG |
| Cable hnyav | 7 3g/m |
| Exposure kub | Mus txog 60 degree |
Cim npe nrov: gdl4y roj to cable, Tuam Tshoj gdl4y roj to cable manufacturers, lwm tus neeg, Hoobkas
